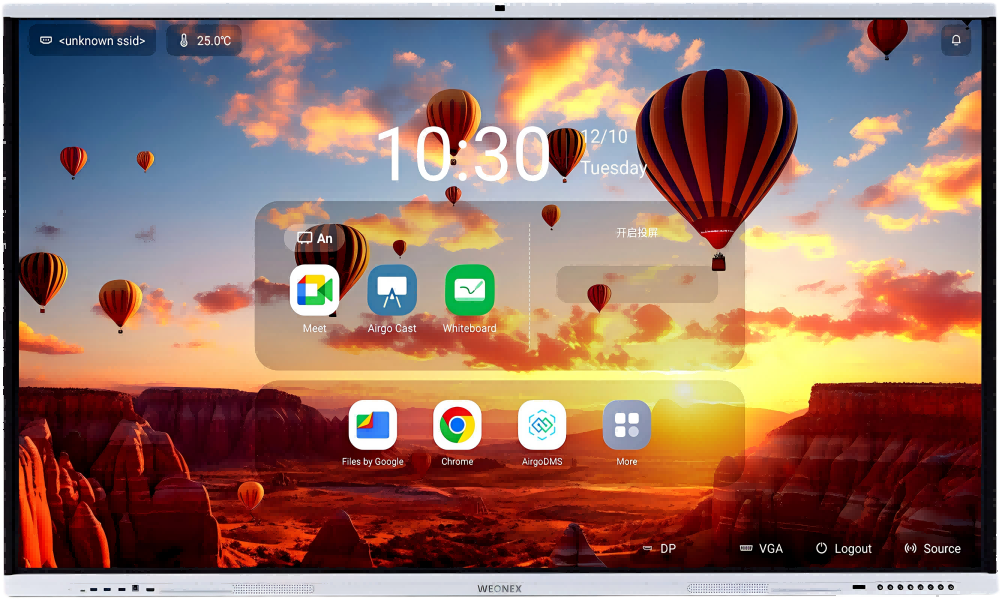

Empowered by AI Chipset

Elevate your teaching and presentations with seamless efficiency.

EDLA Certified
EDLA certification unlocks the full potential of Google apps while enjoying a safe and integrated experience.

Touch Penetration Technology
• Provide responsive and accurate pen input with minimal delay.
• Support concurrent interaction across pop-up windows and the main interface, improving efficiency with finger control and pen annotation.

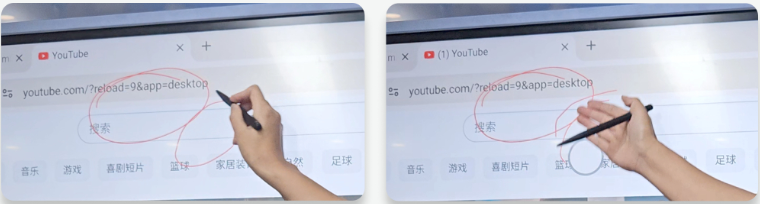

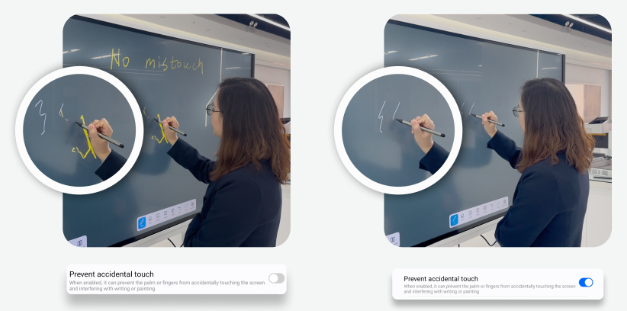

Palm Rejection
· Accurately differentiates between pen input and palm contact to prevent unintended marks and ensure precise, smooth writing.
· Prevents palm contact from triggering screen movement or selection, maintaining a seamless and uninterrupted writing experience.

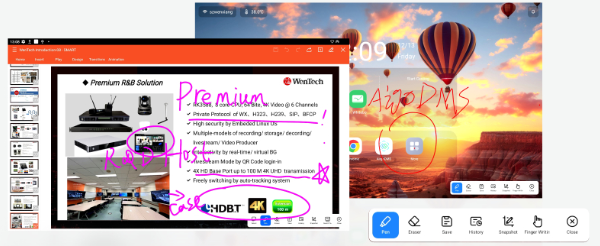

Annotation
Enable real-time annotation on screen with customize colour and stroke thickness.

AI Recognition & Search
Integrate screenshot, annotation, and search functions, enabling efficient marking, commenting, and quick content retrieval.

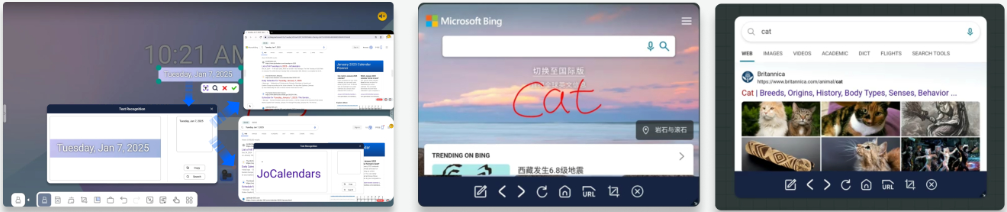

Handwriting Input & Search
· Function Tool: Operate in a small window to support classroom teaching.
· Browser & OCR Integration: Supports handwriting input and search via the browser, with image-to-text conversion for easy extraction and translation.

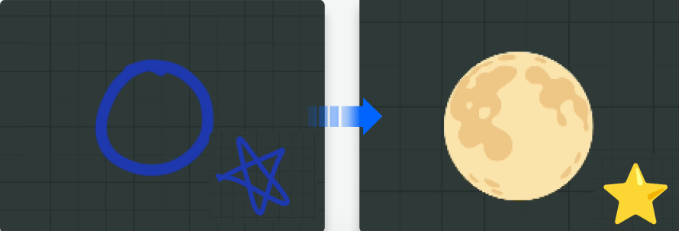

Magic Pen
· Pattern Recognition & Filling: Recognize user-drawn patterns and automatically completes them with matching designs.
· Rich Pattern Library & Template: Offer a diverse selection of patterns and templates to inspire user creativity.
· Enhanced Teaching: Enhances engagement and interactivity in the teaching process.

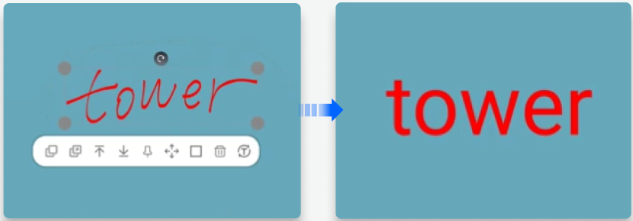

Handwriting Trajectory Secondary Recognition & Search
· Customized & Searchable: Customized handwriting recognition for precise, seamless input and searchable notes.
· Multilingual: Enable multiple languages to broaden application usability.

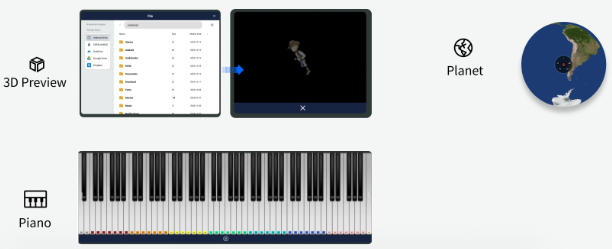

New Whiteboard Tools
· 3D Model: Show contents in 3D, boost spatial thinking.
· Planet 2D/3D: Help teach related subjects, make lessons more visual and impactful.
· Piano: Offer a handy tool for music classes, enhance interaction.

Specification
| Display | Light Source | D- LED |
| Brightness | 400cd/㎡ | |
| Contrast | 98'' : 1200:1, 65''/75''/86'' :4000:1 | |
| Resolution | 3840*2160 | |
| Response Time | 5 ms | |
| Viewing Angle | 178 ° | |
| Display Colour | 10.7 bits | |
| Screen Protection | 4mm Toughened Glass Surface Protection | |
| OPS Processing (Optional) | Processor | 12ᵗʰ/13ᵗʰ/14th Gen Intel® Core™ i5/ i7 |
| RAM | 8G/16G/32G/64 | |
| Storage | 128GB/256GB/512GB | |
| LAN Port | 1 | |
| WLAN | Intel I226 Gigabit Ethernet | |
| Android Processing | Processor | Cortex A72 ×4 + A53 ×4 |
| Graphics Processor | ARM Mali G52 MC3 | |
| RAM | 8G | |
| Storage | 128G | |
| WIFI | WIFI6 IEEE 802 . 11 ax/ac/a/b/g/ n ,BT5.4 | |
| Bluetooth | 5.4 | |
| Android Version | 16 | |
| Interactive Parameters | Touch Sensor | IR |
| Touch Point | 50 points touch, 40 points writing | |
| Writing Tools | Fingers, pens, or other non-transparent objects | |
| Touch Resolutions | 3840*2160 | |
| Response Time | 5ms | |
| Positioning Accuracy | ±1mm |
